Flow integration

Automation
flow
Provider stub

Scope NC Flow rules to a specific Open Register schema or object. Surfaces the rules plus their recent fire events. Provider stub today.

Group
Workflow
Required app
workflowengine
Storage
Link table
Icon
RobotOutline

NC workflowengine is part of Nextcloud core (always present, sometimes disabled). The Flow leaf surfaces flow rules scoped to an Open Register schema or object, plus the recent fire events those rules emitted. Provider registers today; the wrapping service + link table land in a follow-up.

Screenshot​

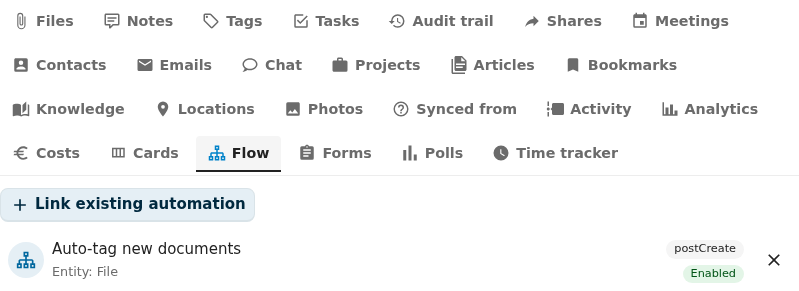

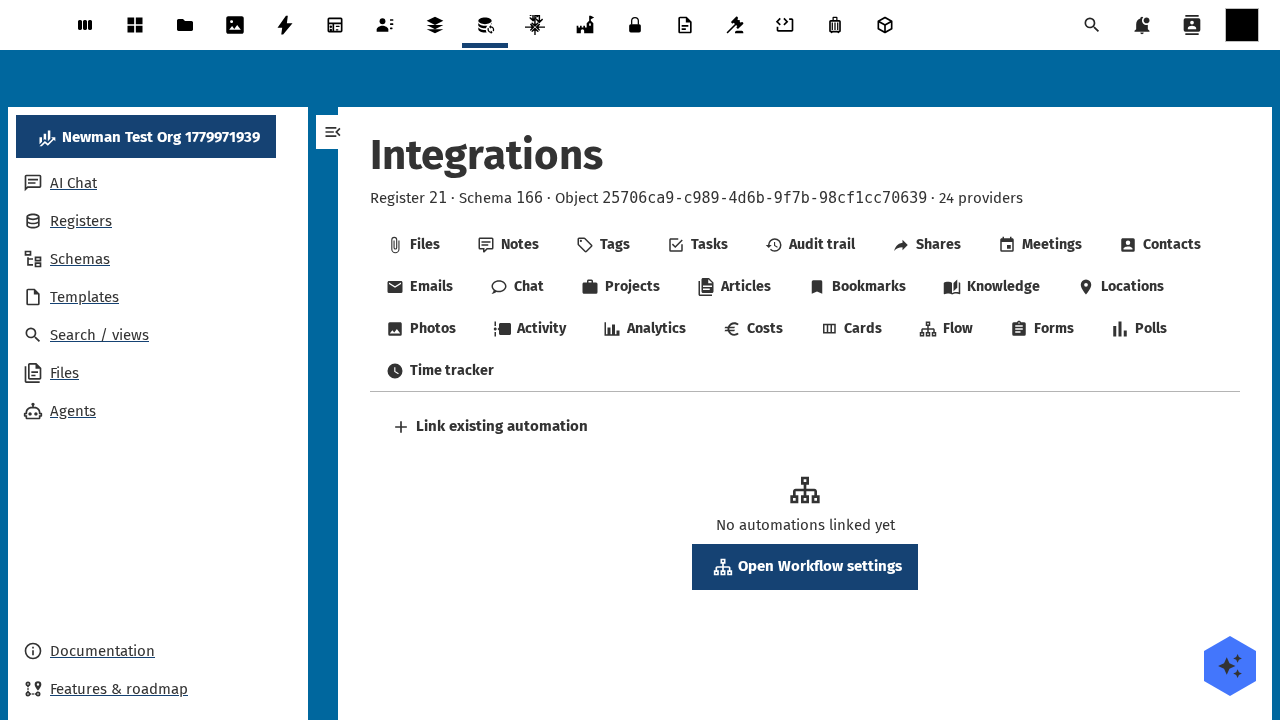

The integration registers in OpenRegister's in-page registry and renders as one of the tabs on the standalone integrations view. The tab is highlighted active here so you can see exactly which surface this leaf controls.

flow integration tab active in the OpenRegister integrations view

Captured by tests/e2e/leaf-screenshots.spec.ts against the seeded integration-verification register on the dev container. Empty state (Nothing linked yet) is expected on a freshly seeded object — link an upstream entity from the tab's + Add affordance to populate it.

What it will do​

  • Lists flow rules scoped to this schema/object on the Automation sidebar tab.
  • Shows the recent fire events ("rule X fired N times today on this object's children").
  • Lets users link an existing rule, or create one via the NC core flow-rule UI.
  • Integrates with Open Register's own workflow engine so the events show up on Open Register's read path too.

Setup​

1. Make sure workflowengine is enabled​

It ships with NC core, but admins sometimes disable it. Check on Apps → Disabled.

2. Use it on an object​

Open any object whose schema declares linkedTypes: ['flow']. The Automation tab appears. Today it renders the empty state until the wrapping service lands.

Configuration​

FieldOpen Register sideNC workflowengine side
Storagelink-table (openregister_flow_links, pending)NC flow_operations, flow_checks
AggregationRead-time aggregation from NC Flow's fire events—
RefreshPer render—

Local verification setup​

The leaf-verification harness in tests/e2e/leaf-verification.spec.ts probes every advertised provider against the seeded integration-verification register; you can reproduce a single-leaf check by hand against any OpenRegister dev container.

1. Install the workflowengine Nextcloud app​

docker exec -u www-data nextcloud php occ app:install workflowengine
docker exec -u www-data nextcloud php occ app:enable workflowengine
docker exec nextcloud apache2ctl graceful   # bust OPcache so the registry sees the new app

Without workflowengine enabled, the flow provider reports enabled: false on the OCS capabilities payload and its sub-resource endpoint refuses to dispatch.

2. Probe the registry to confirm the provider is advertised​

curl -s -u admin:admin -H 'OCS-APIRequest: true' \
  http://localhost:8080/ocs/v2.php/cloud/capabilities?format=json \
  | jq '.ocs.data.capabilities.openregister.integrations.providers[] | select(.id == "flow")'

Expected payload — the enabled flag flips to true once the required app is installed.

3. Probe the per-object sub-resource​

curl -s -u admin:admin -H 'OCS-APIRequest: true' \
  "http://localhost:8080/index.php/apps/openregister/api/objects/21/166/25706ca9-c989-4d6b-9f7b-98cf1cc70639/integrations/flow"

Most recent harness run (against the seeded verification-probe object on this dev container):

  • Status: 200 (list-envelope)
  • Latency: 85ms
  • Body: matches the documented list envelope below
{
  "items": []
}

The OCS-APIRequest: true header is mandatory — without it, Nextcloud's session-CSRF guard short-circuits with HTTP 412 before the provider runs. An empty items: [] is the correct response for a freshly-seeded object that hasn't been linked to any upstream flow entity yet.

Current status​

Provider registered. Wrapping service + link table tracked under openspec/changes/integration-flow.
