Contacts integration

Contacts
contacts
Backend ready

vCard contacts linked to Open Register objects with a role per link (applicant, handler, advisor, ...). Reverse lookup from any contact answers 'which objects is this person on?'.

Group
Communication
Required app
contacts
Storage
Link table
Icon
AccountBox

Link people to an object with a role per link. The same person can be an applicant on one case and an advisor on another. The link lives in openregister_contact_links (the role and cached display fields) plus X-OPENREGISTER-* properties on the vCard (so NC Contacts knows the person is linked too).

Screenshot​

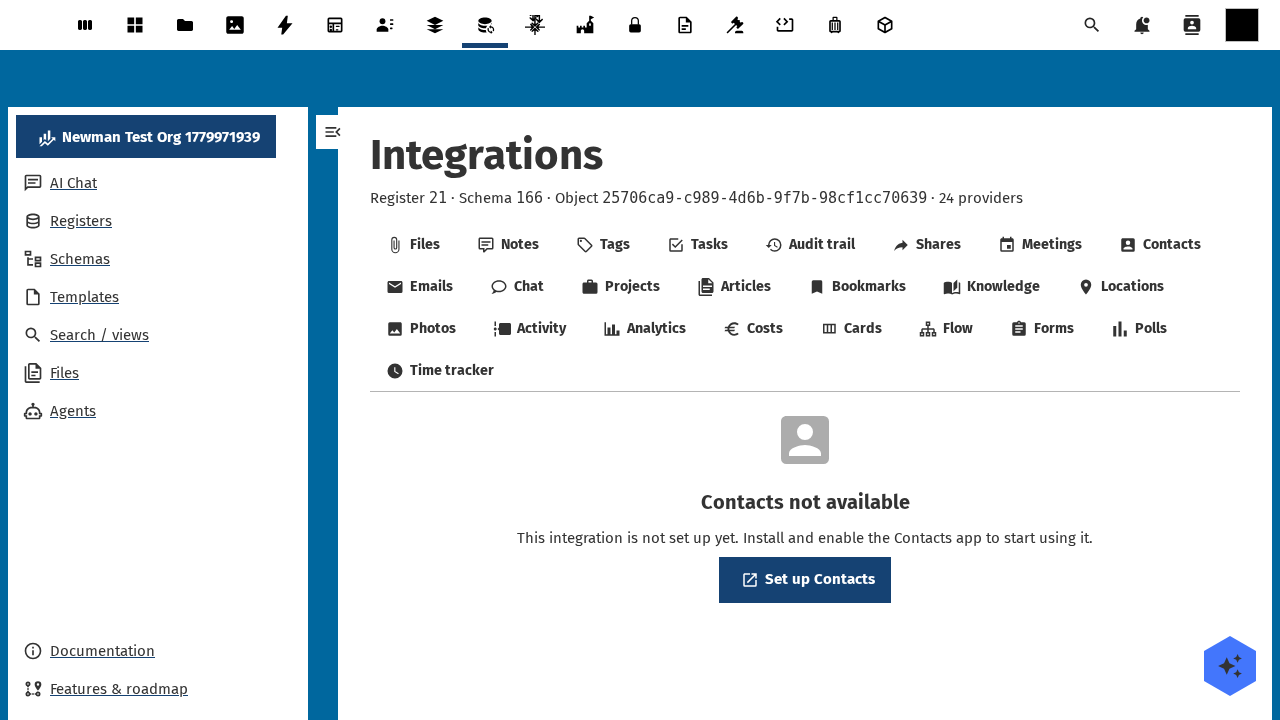

The integration registers in OpenRegister's in-page registry and renders as one of the tabs on the standalone integrations view. The tab is highlighted active here so you can see exactly which surface this leaf controls.

contacts integration tab active in the OpenRegister integrations view

Captured by tests/e2e/leaf-screenshots.spec.ts against the seeded integration-verification register on the dev container. Empty state (Nothing linked yet) is expected on a freshly seeded object — link an upstream entity from the tab's + Add affordance to populate it.

What it does​

  • Lists vCard contacts linked to each Open Register object on the Contacts sidebar tab, grouped by role.
  • Lets users link an existing contact (picker) or create a new contact from a name + email + phone (inline form).
  • Lets users update a link's role without re-linking. The role lives on the link, not the contact.
  • Lets users unlink a contact. The vCard stays in NC Contacts; the link row and X-OPENREGISTER-* properties are removed.
  • Resolves a referenceType: 'contacts' schema property to a single-entity chip with display name and role.
  • Reverse lookup: "all objects where person X has role Y" via GET /api/contacts/{uid}/objects.

Setup​

1. Install NC Contacts​

Install the contacts Nextcloud app. Without it, the Contacts tab stays hidden and the OCS capabilities mark the leaf enabled: false.

2. Make sure each user has an addressbook​

CardDAV creates a personal addressbook automatically on first use. If a user has none, the Contacts tab shows an empty state with a "Create an addressbook" link.

3. Use it on an object​

Open any object whose schema declares linkedTypes: ['contacts']. The Contacts tab appears in the sidebar.

  • Link an existing contact — open the picker, search by display name or email, pick one. Choose a role.
  • Create a new contact — fill the inline form (display name, email, phone, role). The new vCard lands on the user's first addressbook, the link row is created with the right role.
  • Change a role — click the role chip on a row. The dropdown lists the role enum your schema declares.
  • Unlink — removes the link row and the X-OPENREGISTER-* properties from the vCard. The vCard itself stays.

Configuration​

FieldOpen Register sideNC Contacts side
Storagelink-table (openregister_contact_links)vCard X-OPENREGISTER-OBJECT + X-OPENREGISTER-ROLE
Mappingrole, display name (cached), email (cached), linked-by, linked-atvCard UID, FN, EMAIL, TEL
Rolesconfiguration.linkRoles on the schema (default: free-form string)X-OPENREGISTER-ROLE
RefreshPer render (CardDAV is real-time for the picker)—
PermissionsInherits from object RBACUser owns their addressbook

What gets stored on the vCard​

BEGIN:VCARD
VERSION:3.0
UID:contact-9f4a
FN:Jane Doe
EMAIL;TYPE=INTERNET:jane@example.org
X-OPENREGISTER-OBJECT:e9e3cdeb-0c7d-4326-a57e-09907d9e06b7
X-OPENREGISTER-ROLE:applicant
END:VCARD

A contact can carry multiple X-OPENREGISTER-OBJECT and X-OPENREGISTER-ROLE lines (one pair per linked object) so reverse lookup works from a single vCard read.

Using it​

Contacts sidebar tab​

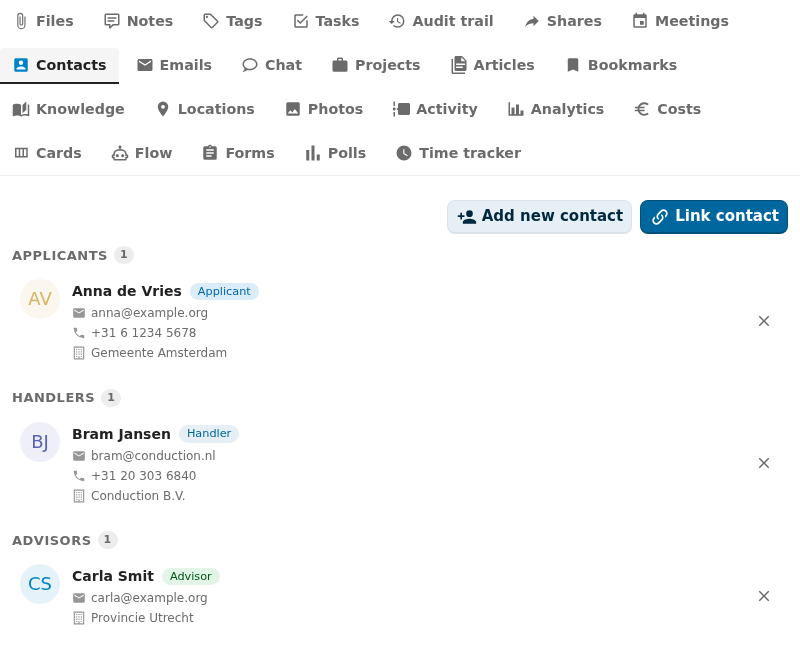

The tab groups linked contacts by role. Each row shows the contact's display name, email, role chip, and an "open in NC Contacts" anchor. The role chip is editable inline. An inline "Add contact" form opens the picker or the create-new flow.

Detail-page widget​

Surfaces every linked contact, grouped by role, in a compact card. The picker / create-new flows are the same as the tab.

Dashboard widgets​

  • user-dashboard — your top contacts across every linked object.
  • app-dashboard — contacts scoped to the consuming app's register/schema.

Reference property​

A schema property typed as { "type": "string", "referenceType": "contacts" } renders the linked contact's display name + role chip in CnFormDialog and CnDetailGrid. Use this for the "applicant" or "owner" field of an object.

Roles on the schema​

Declare the roles a person can hold on an object of the schema under configuration.linkRoles:

{
  "linkedTypes": ["contacts"],
  "linkRoles": [
    { "key": "initiator", "label": "Initiator", "description": "Who asked for it" },
    { "key": "handler", "label": "Handler" },
    "advisor"
  ]
}

A bare string is read as a key and label of the same value. Keys are unique and at most 64 characters. When a schema declares linkRoles, a link or update with another role is refused with 400 naming the allowed keys. A schema without it accepts free-text roles. The list endpoint returns the vocabulary as roles, so a picker reads one call. (Earlier versions of this page named x-contactRoles; no code ever read it.)

Users beside contacts​

A person on an object can be a Nextcloud user as well as a contact. Post {"userId": "jan", "role": "handler"} to the same endpoint; the link stores user:jan as its contactUid, so update, delete and reverse lookup use that value. Display name, email and avatar come from the account, and no Contacts app is needed for a user link.

Every link, user or contact, carries validFrom, validUntil (dates) and note, and the JSON says kind (user or contact) and active (today inside the window, an unset bound open). A person may hold several roles on one object: linking the same person in the same role updates the row, in another role adds one. PUT .../contacts/{contactUid} changes role, validFrom, validUntil and note (currentRole names which link when the person holds several); DELETE .../contacts/{contactUid}?role=advisor removes one role, without role every link of that person.

The service dispatches PersonLinkedEvent, PersonLinkUpdatedEvent and PersonUnlinkedEvent (each carrying the ContactLink) after a write, so an app can project the link onto its own records.

Troubleshooting​

  • Picker shows no results. The user has no addressbook yet. Open NC Contacts at least once to create one.
  • Same person linked twice with different roles. That is by design — each link is a (contact, object, role) triple. Unlink the role you don't want.
  • "Contact link not found" on role update. The link row was already removed. Refresh the tab.
  • Tab is missing. Either NC Contacts isn't installed or the object's schema does not declare linkedTypes: ['contacts']. Check both.

Reverse lookup​

To find every object a contact is linked to:

GET /index.php/apps/openregister/api/contacts/{contactUid}/objects

Returns the list of { objectUuid, register, schema, role, linkedAt } triples. Use this on a contact detail page to surface "which cases is this person on?".
