Activity integration

Activity
activity
Provider stub

Filter NC Activity events relevant to a given Open Register object — linked files, linked actors, linked tasks. Read-only by design (events are not editable). Provider stub today.

Group
Workflow
Required app
activity
Storage
Query-time (live)
Icon
Timeline

Surface NC Activity events scoped to a single Open Register object. The provider is registered today — the Activity sidebar tab appears the moment NC Activity is installed — but its list() returns an empty list until the filter service ships in a follow-up.

Screenshot​

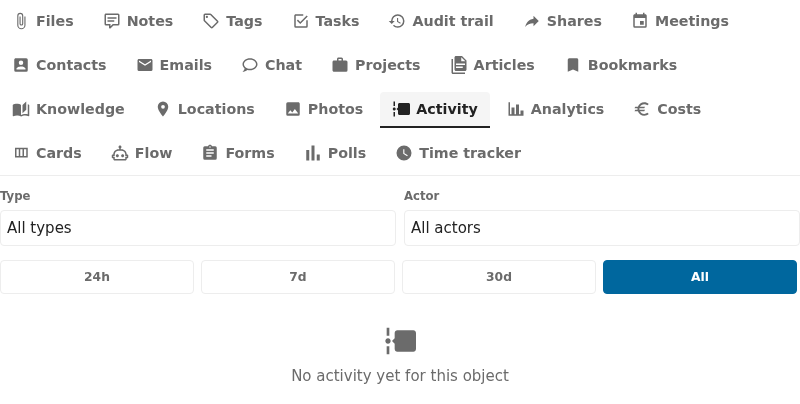

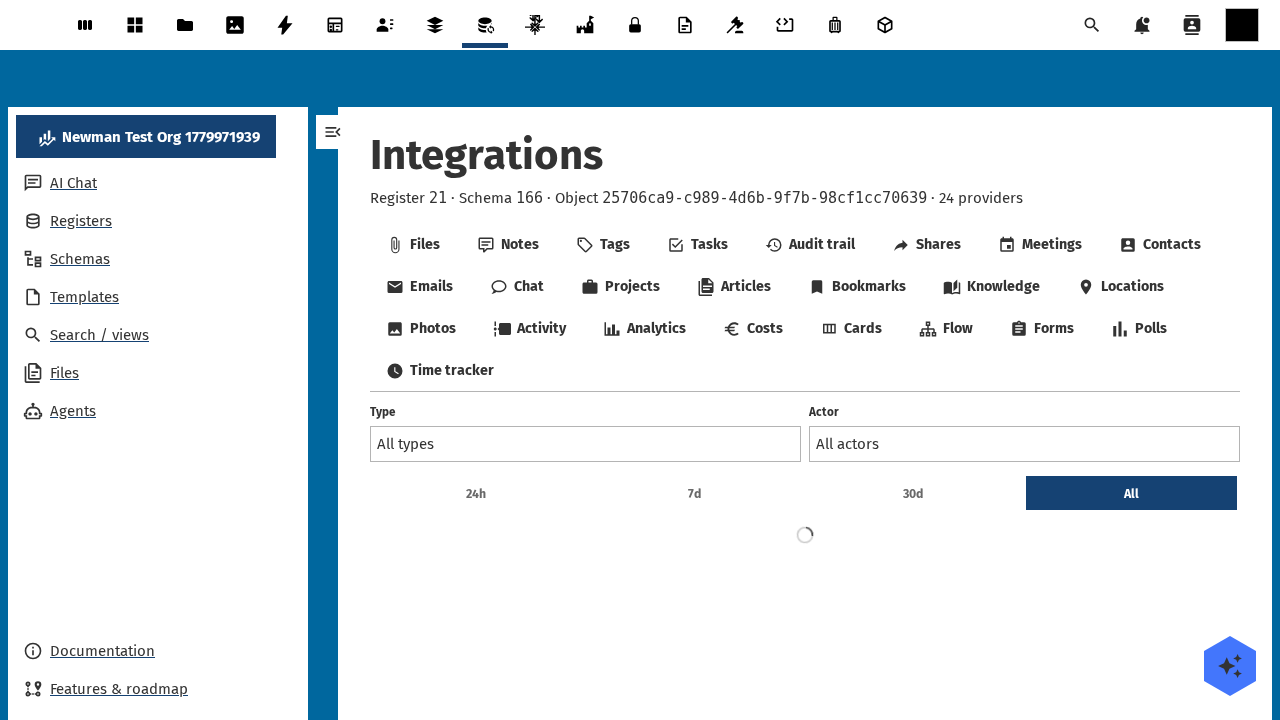

The integration registers in OpenRegister's in-page registry and renders as one of the tabs on the standalone integrations view. The tab is highlighted active here so you can see exactly which surface this leaf controls.

activity integration tab active in the OpenRegister integrations view

Captured by tests/e2e/leaf-screenshots.spec.ts against the seeded integration-verification register on the dev container. Empty state (Nothing linked yet) is expected on a freshly seeded object — link an upstream entity from the tab's + Add affordance to populate it.

What it will do​

  • Lists Activity events scoped to this object's linked files, linked actors, and linked tasks on the Activity sidebar tab.
  • Read-only. Activity events are not editable. create() / update() / delete() throw NotImplementedException per AD-22.
  • No link table — the filter runs live on every render (query-time storage).
  • Honours NC Activity's per-user visibility rules.

Setup​

1. Install NC Activity​

Install the activity Nextcloud app. The Activity tab appears once it's enabled. The OCS capabilities reports enabled: true.

2. Use it on an object​

Open any object whose schema declares linkedTypes: ['activity']. The Activity tab appears in the sidebar. Today it renders the empty state ("Nothing logged yet") until the filter service lands.

Configuration​

FieldOpen Register sideNC Activity side
Storagequery-time (no link table)NC oc_activity (read-only)
RefreshPer render—
PermissionsInherits from object RBAC + Activity's per-user filterNC Activity ACL

Local verification setup​

The leaf-verification harness in tests/e2e/leaf-verification.spec.ts probes every advertised provider against the seeded integration-verification register; you can reproduce a single-leaf check by hand against any OpenRegister dev container.

1. Install the activity Nextcloud app​

docker exec -u www-data nextcloud php occ app:install activity
docker exec -u www-data nextcloud php occ app:enable activity
docker exec nextcloud apache2ctl graceful   # bust OPcache so the registry sees the new app

Without activity enabled, the activity provider reports enabled: false on the OCS capabilities payload and its sub-resource endpoint refuses to dispatch.

2. Probe the registry to confirm the provider is advertised​

curl -s -u admin:admin -H 'OCS-APIRequest: true' \
  http://localhost:8080/ocs/v2.php/cloud/capabilities?format=json \
  | jq '.ocs.data.capabilities.openregister.integrations.providers[] | select(.id == "activity")'

Expected payload — the enabled flag flips to true once the required app is installed.

3. Probe the per-object sub-resource​

curl -s -u admin:admin -H 'OCS-APIRequest: true' \
  "http://localhost:8080/index.php/apps/openregister/api/objects/21/166/25706ca9-c989-4d6b-9f7b-98cf1cc70639/integrations/activity"

Most recent harness run (against the seeded verification-probe object on this dev container):

  • Status: 200 (list-envelope)
  • Latency: 88ms
  • Body: matches the documented list envelope below
{
  "items": []
}

The OCS-APIRequest: true header is mandatory — without it, Nextcloud's session-CSRF guard short-circuits with HTTP 412 before the provider runs. An empty items: [] is the correct response for a freshly-seeded object that hasn't been linked to any upstream activity entity yet.

Current status​

The provider is registered: the admin row appears, the JS sidebar tab renders, the OCS capability advertises activity. The wrapped read path (filter NC's activity stream by associated actors/events) lands in a follow-up issue tracked under openspec/changes/integration-activity.
