Webhooks & Notifications

Overview

OpenRegister delivers event notifications to external systems via a full-featured webhook infrastructure and to Nextcloud users via in-app notifications. The webhook system uses CloudEvents v1.0 as the standard payload format, supports configurable payload transformation via Twig mappings, HMAC signing for security, retry with exponential backoff, and multi-tenant isolation.

Tender demand: 51% of analyzed government tenders require notification capabilities.

Webhooks

Webhook Configuration

A webhook subscription is registered via the API and stored as a Webhook entity with 23 fields:

{
  "url": "https://external.system.nl/api/events",
  "events": ["nl.conduction.openregister.object.created", "nl.conduction.openregister.object.updated"],
  "secret": "hmac-signing-secret",
  "method": "POST",
  "headers": { "X-Source": "openregister" },
  "timeout": 30,
  "retryPolicy": "exponential",
  "register": "meldingen-register",
  "schema": "meldingen"
}

Webhooks can be scoped to a specific register, schema, or object-level filter condition.

Payload Formats

Three payload strategies are applied in priority order:

Priority	Strategy	Description
1 (highest)	Twig Mapping	Payload is transformed by a Mapping entity using Twig templates — arbitrary output format
2	CloudEvents v1.0	Standard CloudEvents envelope, recommended for interoperability
3	Standard	OpenRegister native JSON format

Twig Mapping enables delivering events in any format required by the subscriber — ZGW notifications, FHIR events, VNG Notificaties API format, Slack messages, etc. — without hardcoded format knowledge in OpenRegister.

HMAC Signing

Outgoing webhook requests are signed with HMAC-SHA256 using the configured secret:

X-Signature: sha256=<hex_signature>

Subscribers can verify authenticity by computing the same signature over the raw request body.

Retry Mechanism

Failed webhook deliveries are retried by WebhookRetryJob (runs every 5 minutes):

Policy	Description
exponential	Backoff doubles with each attempt (1m, 2m, 4m, 8m, …)
linear	Fixed interval between attempts
fixed	All retries at the same interval

Maximum retry count and backoff ceiling are configurable per webhook.

Delivery Logging

Every delivery attempt is logged in WebhookLog:

• HTTP status code and response body
• Delivery timestamp and duration
• Error message for failed deliveries
• Retry count

Statistics are available via GET /api/webhooks/{id}/statistics.

Event Filtering

WebhookEventListener handles 36+ event types across 11 entity categories. Webhooks can filter by:

• Event type (class name)
• Register slug
• Schema slug
• Conditional property matching (object-level conditions)

Multi-Tenancy

Webhooks are scoped to organisations via MultiTenancyTrait on WebhookMapper. Each organisation's webhooks only receive events for objects in their organisation scope.

Management API

GET    /api/webhooks                         List all webhooks
POST   /api/webhooks                         Create a new webhook
GET    /api/webhooks/{id}                    Get a webhook
PUT    /api/webhooks/{id}                    Update a webhook
DELETE /api/webhooks/{id}                    Delete a webhook
POST   /api/webhooks/{id}/test               Send a test event
GET    /api/webhooks/{id}/logs               List delivery logs
GET    /api/webhooks/{id}/statistics         Delivery statistics
POST   /api/webhooks/{id}/retry/{logId}      Manually retry a failed delivery
GET    /api/webhooks/events                  List all available event types

In-App Notifications

OpenRegister integrates with Nextcloud's INotificationManager for user-facing in-app notifications:

Notification Channels

Channel	Description
nc-notification	Nextcloud notification bell (via INotificationManager)
email	Via IMailer (being replaced by n8n)
activity	Activity stream entry per recipient
webhook	Inline POST per dispatch; with webhook.persistent: true an auto-managed Webhook entity routes through the standard retry / HMAC / dead-letter pipeline
talk	Posts a chat message to the configured Spreed room (one-shot per dispatch, recipients are not @-mentioned)

Notification Rules

Rules live on the schema under configuration['x-openregister-notifications']. Each entry has trigger, recipients, channels, and a subject template (supports {{prop}} interpolation).

Triggers

trigger.type	Fires when
created	Object created.
updated	Object updated.
transition	Object transitioned via the lifecycle state machine. Optional trigger.action filters to a specific action.
scheduled	Periodic. Requires trigger.intervalSec >= 60. The 60s ScheduledNotificationJob iterates the schema, optionally narrowed by trigger.filter (flat equality, relative-date and inequality operators — see below), and dispatches at most once per object per dedup fingerprint until the watched fields change (see Scheduled trigger filters & per-object dedup below).
threshold	Aggregation crossed a threshold. Requires trigger.aggregation (declared on the same schema), trigger.op ∈ [gt, gte, lt, lte, eq, ne], and trigger.value. AggregationThresholdListener re-runs the aggregation on object-write events and dispatches once per below→above transition.

Recipient kinds

kind	Resolution
users	Literal list (recipient.users: [uid, …]).
field	Reads recipient.field from the object data, treats the value as a uid.
groups	Members of recipient.groups.
relation	Resolves a typed x-openregister-relations field; reads either a uid string, an array of uids, or an array of objects with userId.
object-acl	ACL holders of the object for the configured recipient.permission ∈ [read, manage].
expression	Arbitrary resolver class (DI tag in recipient.resolver). Must implement RecipientResolverInterface::resolve(ObjectEntity $object, array $context): string[].

Example

{
  "x-openregister-notifications": {
    "meetingReminderDaily": {
      "trigger": {"type": "scheduled", "intervalSec": 86400, "filter": {"lifecycle": "scheduled"}},
      "recipients": [{"kind": "field", "field": "chair"}],
      "channels": ["nc-notification", "email"],
      "subject": "Reminder: {{title}} starts soon"
    },
    "tooManyOverdue": {
      "trigger": {"type": "threshold", "aggregation": "totalOverdue", "op": "gt", "value": 10},
      "recipients": [{"kind": "groups", "groups": ["admin"]}],
      "channels": ["nc-notification", "talk"],
      "talk": {"token": "abc123def"},
      "subject": "Action items overdue: {{value}}"
    },
    "meetingClosed": {
      "trigger": {"type": "transition", "action": "close"},
      "recipients": [{"kind": "object-acl", "permission": "manage"}],
      "channels": ["webhook"],
      "webhook": {
        "persistent": true,
        "url": "https://example.com/hooks/closed",
        "events": ["ObjectTransitionedEvent"],
        "secret": "..."
      },
      "subject": "Meeting closed"
    }
  }
}

Scheduled trigger filters & per-object dedup

The scheduled trigger's filter is a flat field => spec map ANDed together. Each entry accepts either a scalar (strict equality, v1 behaviour) or an operator object:

Operator	Value form	Meaning
equals	scalar	Strict equality. Same as the scalar shorthand.
notEquals	scalar	Strict inequality. A missing/null field satisfies notEquals for any non-null value.
withinNext	ISO-8601 duration (e.g. PT24H, P7D)	Field is a date or date-time in the half-open window (now, now + duration].
olderThan	ISO-8601 duration	Field is a date or date-time strictly before now − duration.

Relative-date operators fail closed: unparsable values do not match, and the engine logs at debug only. All entries must hold for the object to match (AND semantics). The annotation validator rejects unknown operators, missing values, and malformed durations with HTTP 422.

Per-object dedup. A scheduled rule dispatches at most once per (schema, rule key, object, watched-field fingerprint). The fingerprint is a SHA-1 over the object's current values of the rule's watched fields:

• By default, the watched fields are the filter fields that use a relative-date operator (withinNext / olderThan).
• Override with trigger.dedupeFields: ["field1", "field2", …] — a non-empty array of field names. Validated at save time on the same 422 contract as the operator grammar.
• When there are neither relative-date operators nor dedupeFields, the fingerprint is constant — the rule fires exactly once per object until pruned.

Dedup state lives in oc_openregister_notification_dedupe (durable across cache flushes and worker restarts) and is pruned automatically when:

• the object is deleted (ObjectDeletedEvent → NotificationDedupePruneListener);
• a rule key is removed/renamed in the schema annotation (SchemaCreatedEvent/SchemaUpdatedEvent → NotificationDedupeAnnotationSyncListener);
• a state row has not been re-evaluated for notification_dedupe_retention_days (default 90), reclaimed by the retention sweep that runs inside the scheduled job.

The per-rule intervalSec throttle is unchanged: it bounds scan frequency, not delivery count.

Worked example — taskDueSoon

{
  "x-openregister-notifications": {
    "taskDueSoon": {
      "trigger": {
        "type": "scheduled",
        "intervalSec": 3600,
        "filter": {
          "dueDate": {"operator": "withinNext", "value": "PT24H"},
          "status":  {"operator": "notEquals",  "value": "done"}
        }
      },
      "recipients": [{"kind": "field", "field": "assignee"}],
      "channels":   ["nc-notification", "email"],
      "subject":    "Task '{{title}}' is due within 24h"
    }
  }
}

• The job re-evaluates every hour. Tasks whose dueDate is within the next 24h and status is anything other than done match.
• The watched-field set is ["dueDate"] (the only relative-date field). Each matching task dispatches exactly once for a given dueDate. Reschedule a task → new fingerprint → exactly one new reminder. Mark it done → no more matches; sweep eventually reclaims the dedup row.
• To re-arm whenever the assignee changes too, add "dedupeFields": ["dueDate", "assignee"] to the trigger.

The updated trigger's field-change only_if_changed filter — documented earlier in this page — is independent of scheduled dedup; both pipelines stay decoupled.

Rendering

In-app subjects are rendered by AnnotationNotifier (object_created / object_updated / object_transitioned), localised nl/en, with a primary action linking to the object detail view. A schema's per-locale subject wins; otherwise a canonical localised string is used. Notifier keeps configuration_update_available — the two notifiers are mutually exclusive by subject. Push needs no extra code: notify_push auto-intercepts the same INotificationManager::notify() call.

User Notification Preferences

Notification rules live ONLY in the schema annotation (no rule table) — the dispatcher evaluates them from the already-loaded schema at dispatch time. Per-user preferences are stored as override-only values in Nextcloud per-user app config under the openregister app, keyed notification_pref/<schema>/<notification>. An override only flips the schema-declared default (on/off, optionally narrowing channels) for one (schema, notification) pair; when a user has no override the schema default applies. This gives a zero-migration property: adding a schema — or a notification to an existing schema — works immediately with no per-user backfill.

Before delivering the in-app/push channel, the dispatcher resolves schema-default ⊕ user-override per recipient and skips recipients whose effective value is off (one user's override never affects another's delivery).

Endpoint	Description
GET /api/notification-preferences	Effective notifications for the current user (every notification their accessible schemas declare, merged with their overrides, each tagged schema-default or user-override).
PUT /api/notification-preferences	Record ({schema, notification, enabled, channels?}) or clear ({schema, notification, reset: true}) a single override for the current user only.

The earlier per-(register, schema) NotificationSubscription table + controller are deprecated; existing rows are migrated to user-config overrides by a one-shot repair step and the table is scheduled for removal.

VNG Notificaties API Compliance

For Dutch government interoperability, webhook payloads can be formatted according to the VNG Notificaties API standard via a Twig mapping configuration. This enables OpenRegister to act as a notificatiecomponent in a ZGW API landscape.

Browser Web Push (rich background notifications)

The web-push channel of the x-openregister-notifications dialect delivers a rich OS-level notification — app icon, body, and up to two action buttons — even when the browser or all Nextcloud tabs are closed. It complements the nc-notification channel (which only nudges already-open tabs via notify_push).

A rule opts in by listing web-push in channels and may declare actions[] + originApp (see the dialect reference in ADR-031). Example — an incoming-call notification with an "Open client" button:

"incomingCall": {
  "trigger": { "type": "created", "filter": { "field": "channel", "operator": "equals", "value": "telefoon" } },
  "originApp": "pipelinq",
  "channels": ["nc-notification", "web-push"],
  "recipients": [ { "kind": "field", "field": "agent" } ],
  "subject": { "nl": "Inkomende oproep van {{client}}", "en": "Incoming call from {{client}}" },
  "actions": [
    { "label": { "nl": "Klant openen", "en": "Open client" }, "primary": true,
      "target": { "kind": "object-detail", "object": { "kind": "relation", "field": "client" } } }
  ]
}

Setup (admin)

Web Push needs a one-time VAPID keypair, generated and stored in app config:

occ openregister:web-push:generate-vapid

The public key is exposed to browsers via GET /apps/openregister/webpush/vapid-public-key; the private key never leaves the server. Status and the public key are shown in Admin settings → OpenRegister → Push notifications.

Key rotation: re-running the command replaces the keypair. Existing browser subscriptions are bound to the old key and stop receiving pushes after a rotation — they self-heal when the user re-enables the toggle (which re-subscribes against the new key); the server prunes stale subscriptions on the first 404/410 response from the push service.

Enabling browser notifications (user guide)

Browser push is opt-in — OpenRegister never prompts for notification permission on page load. To turn it on:

1. Click your avatar (top-right) → Settings.
2. Open the Notifications section under Personal.

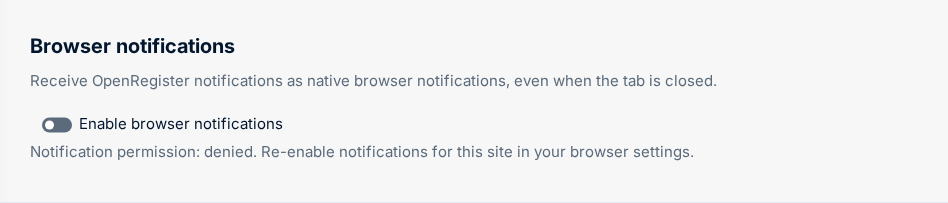

3. Find Browser notifications and switch on "Enable browser notifications".
4. Your browser asks to show notifications — click Allow.

When it is on, the line under the toggle reads "Notification permission: granted". From then on OpenRegister sends you a native notification — with the originating app's icon and any action buttons (for example Open client) — whenever a notification rule you are a recipient of fires, even when no Nextcloud tab is open.

To stop receiving them, switch the toggle off (this removes the browser subscription).

Behind the scenes the toggle requests permission, registers the Service Worker (js/openregister-push-sw.js), and subscribes (pushManager.subscribe({ userVisibleOnly: true, … })). The subscription is stored per user + browser in the openregister_push_subscriptions table (infrastructure state — not an OpenRegister object).

Browser support / degradation

Browser	Background Web Push
Chrome / Edge	Supported — delivered while the browser keeps a background process alive (see below)
Firefox	Supported — delivered while the browser keeps a background process alive (see below)
Safari (macOS/iOS)	Only when the site is an installed PWA; otherwise no background push — degrades to the foreground nc-notification popup

Receiving notifications when the browser is closed

Browser push is delivered over your browser's background connection to its push service (Chrome → FCM, Firefox → Mozilla autopush). The notification arrives without any Nextcloud tab open, but a browser process must be running:

State	Result
A browser window is open (any site — no Nextcloud tab needed)	Arrives immediately
Browser running in the background (window closed, tray process alive)	Arrives immediately — if the browser is actually maintaining its push connection (see the reality check)
Browser fully closed / process asleep	The push is queued by the push service and delivered the moment you next open the browser — nothing is lost

This is standard browser/OS behaviour shared by every web-push site (Slack, Gmail, …) — it is not specific to OpenRegister. For notifications that arrive with no browser running at all, use the native Nextcloud desktop or mobile apps, which have their own push channel.

Keep Chrome receiving with all windows closed

For Chrome to receive a push with no window open, it has to keep a background process running. On Windows:

1. Open Chrome Settings → System (or paste chrome://settings/system into the address bar).
2. Turn on "Continue running background apps when Google Chrome is closed."

Microsoft Edge has the same option at edge://settings/system.

Reality check. This setting is necessary but not sufficient. Even with it on, whether a push is delivered while every window is closed depends on whether Chrome is actually keeping its background connection alive — Windows power management, how you closed Chrome, and Chrome's own throttling can still let the process sleep. When that happens the push is simply queued and delivered the instant you reopen the browser (no Nextcloud tab required, nothing lost). The only reliably-instant states are a browser window open or the browser actively running in the background. For guaranteed always-on delivery, use the native Nextcloud desktop/mobile apps.

Duplicate suppression

When web-push is active and a Nextcloud tab is also open, the stock notifications app would otherwise show its own plain popup for the same event. Each notification carries a stable tag (openregister-<rule>-<objectUuid>) so the rich Service-Worker notification and the stock popup collapse, and the foreground client suppresses the stock popup while web-push is active. With the browser closed there is only one source, so no suppression is needed.

Standards

Standard	Role
CloudEvents v1.0	Default webhook payload envelope
HMAC-SHA256	Webhook request signing
VNG Notificaties API	Dutch government notification format (via Mapping)
Nextcloud INotificationManager	In-app notification delivery
Web Push Protocol (RFC 8030) + VAPID (RFC 8292)	Background browser notifications
aes128gcm (RFC 8291)	Web Push payload encryption (via minishlink/web-push)

Related Features

• Event-Driven Architecture — all mutations dispatch events consumed by WebhookEventListener
• Workflow Automation — schema hooks also trigger on object events
• Real-Time Updates — SSE provides in-browser realtime (no polling)
• Access Control (RBAC) — webhooks are organisation-scoped
